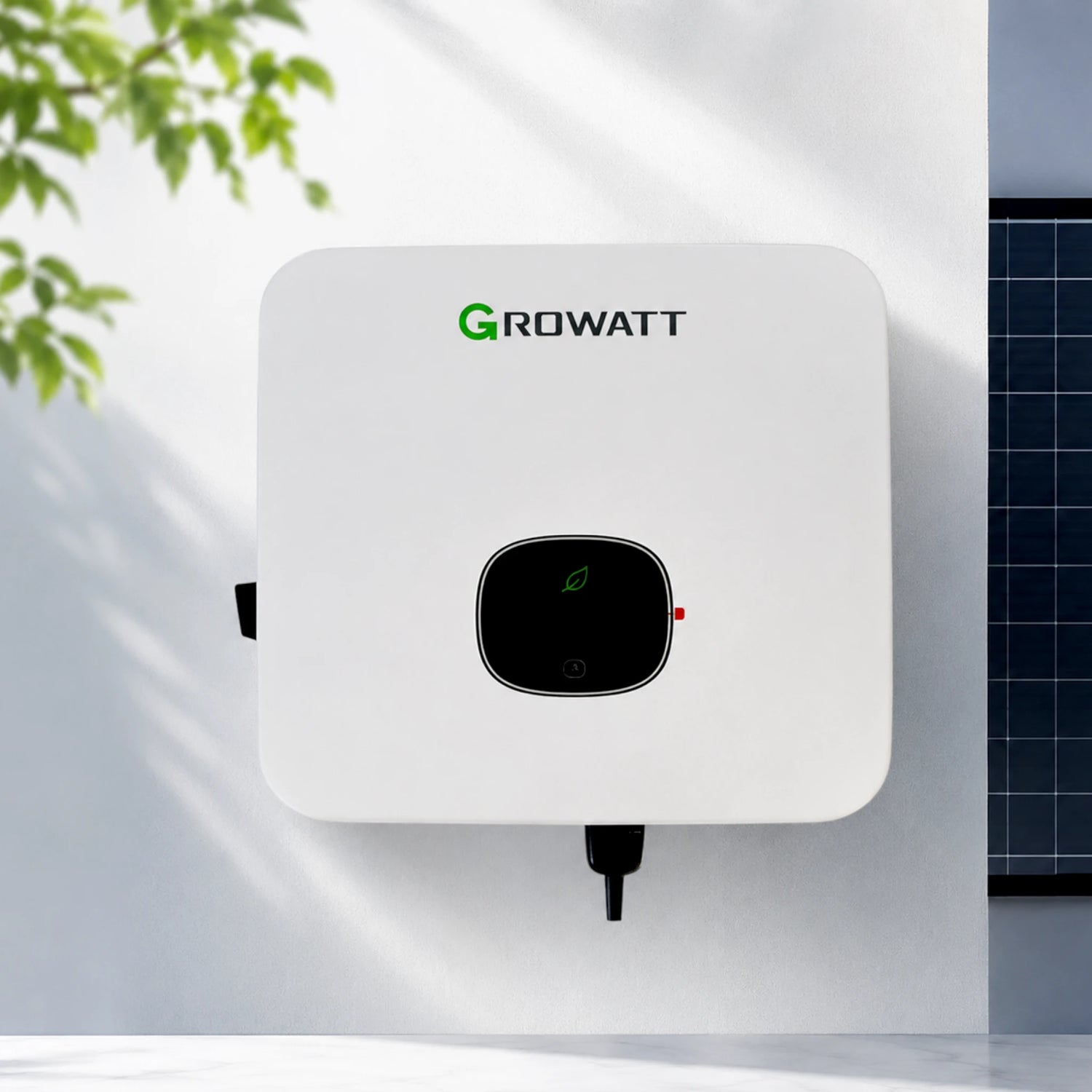

Growatt MOD 10KTL3-X (Pro) 10kW Three-Phase On-Grid Solar Inverter | Dual MPPT & IP66

Max Power, Unmatched Efficiency: The Ultimate Three-Phase Solar Solution

Take control of your home or commercial energy with the Growatt MOD 10KTL3-X (Pro) 10kW Three-Phase On-Grid Inverter. Designed for small-to-medium commercial rooftops and larger residential systems, this grid-tied solar powerhouse transforms raw sunlight into maximum utility savings.

Engineered with a dual Maximum Power Point Tracking (MPPT) system, this inverter optimizes performance across multiple roof orientations or uneven shading, ensuring you get the absolute highest energy yields from morning to sunset.

Why Choose the Growatt MOD 10KTL3-X?

• Ultra-High Yields: Boasting a class-leading 98.6% maximum efficiency and 99.9% MPPT efficiency, almost no generated power goes to waste.

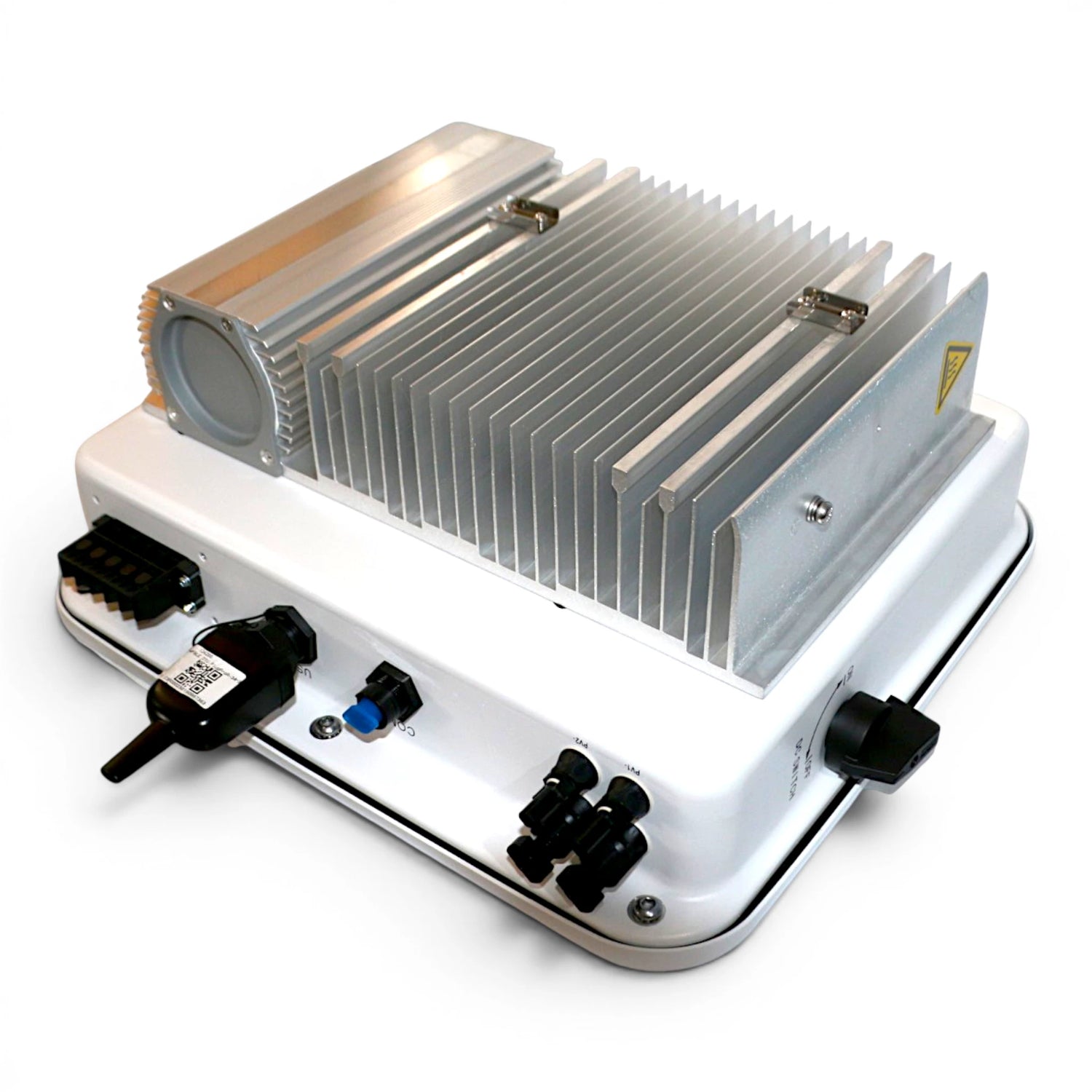

• Built to Brave the Elements: With a robust, dustproof, and waterproof IP66 protection rating combined with natural convection (fanless) cooling, this unit runs silently and reliably indoors or outdoors.

• Dual MPPT Technology: Connect up to two separate solar panel arrays facing different directions to keep your system performing at peak output all day.

• OLED Screen & Touch Button: Ditch old-school clunky controls. This sleek modern design features a crystal-clear OLED display with an intuitive single capacitive touch button for seamless local navigation.

• Future-Proof & Battery-Ready: Easily upgrade or scale your system. Supports export limitation settings to prevent excess power overflow if mandated by local utilities.

• Smart Cloud Monitoring Ready: Plug in standard USB/RS485 communication dongles (such as the Eybond WFBLE.DTU.Plug Pro or ShineWiFi-X) to track your real-time generation, export rates, and diagnostic data straight from your smartphone.

Advanced Safety Protocols Standard

Your safety is paramount. The Growatt MOD 10KTL3-X comes fully integrated with premium hardware protections:

• Type II Surge Protection Devices (SPD) pre-installed on both the AC and DC sides to guard against lightning strikes and power surges.

• Integrated DC Switch for safe maintenance disconnections.

• Optional Arc-Fault Circuit Interrupter (AFCI) to actively detect and eliminate dangerous electrical arcs, reducing the risk of fire.

• DC Reverse-Polarity, Ground Fault, and Grid Monitoring features.

Technical Specifications
